Overview

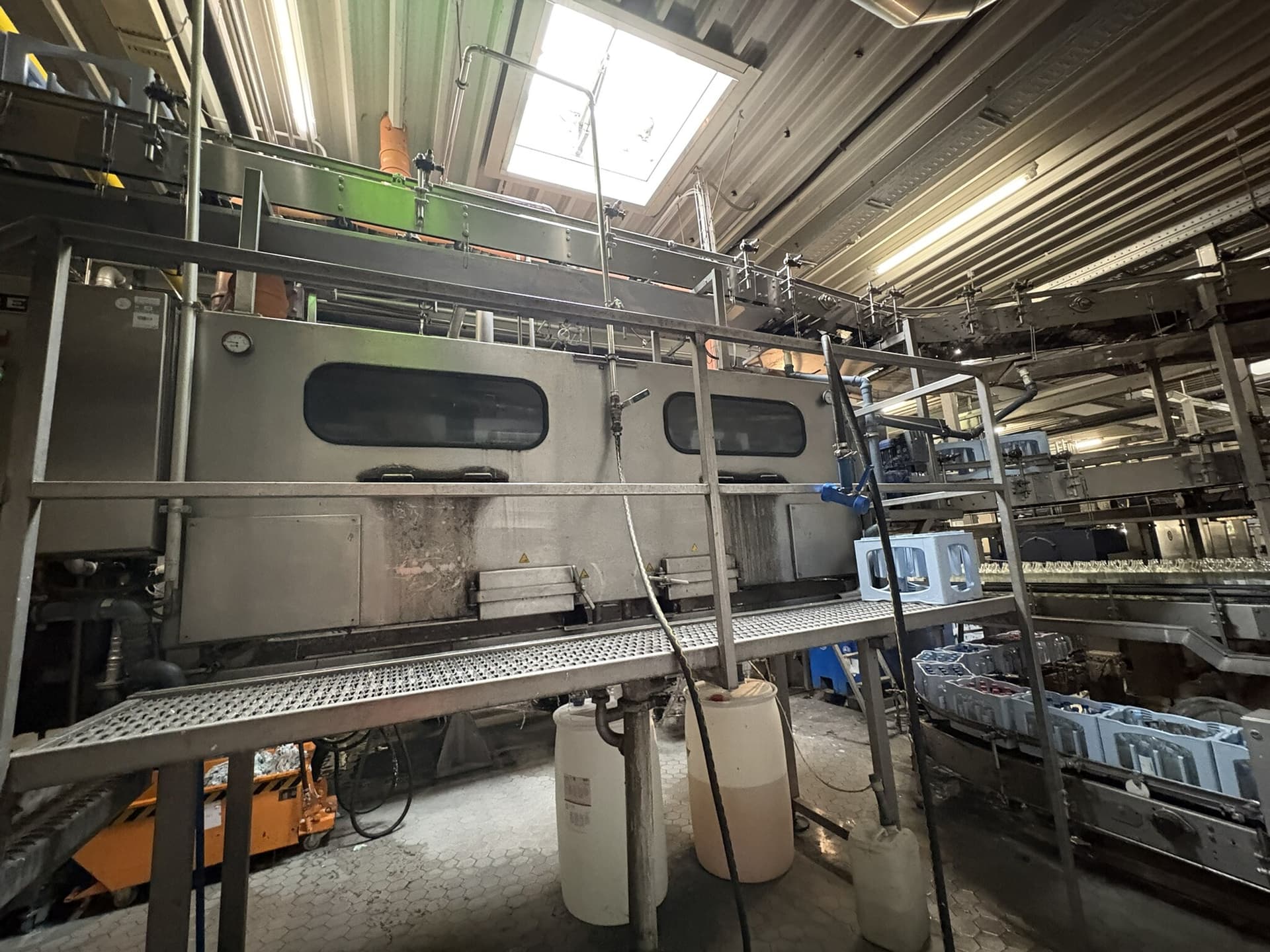

The crate washer was manufactured in 2000 by the German company Bohrer. It is located at a German brewery and was part of a plant that has been shut down as it was replaced by a completely new line. In autumn 2024 the line was stopped and the machine was dismantled and stored.

Technical Details

• Capacity: up to 2,000 crates/hour (can be adjusted from 500 - 2,500 crates/hour)
• Formats:
  • crate of 12 bottles 700ml 356 x 275 x 346 travel direction crosswise
  • crate of 20 bottles 250ml 360 x 275 x 255 travel direction crosswise
  • crate of 20 bottles 500ml 400 x 300 x 290 travel direction crosswise
  • crate of 20 bottles 500ml 400 x 333 x 260 travel direction crosswise
• Horizontal and vertical spray nozzles
• Spraying with hot caustic and fresh water
• Caustic heater with temperature regulation is integrated in the machine
• Machine is heated by steam
• Dimensions:
  • Length: 4800mm
  • Width: 900mm
  • Height: 1400mm
  • Weight: 1800kg
• Sieves for removal of dirt
• Incl. documentation
• Incl. spare parts list
• Incl. Electrical diagram
