Overview

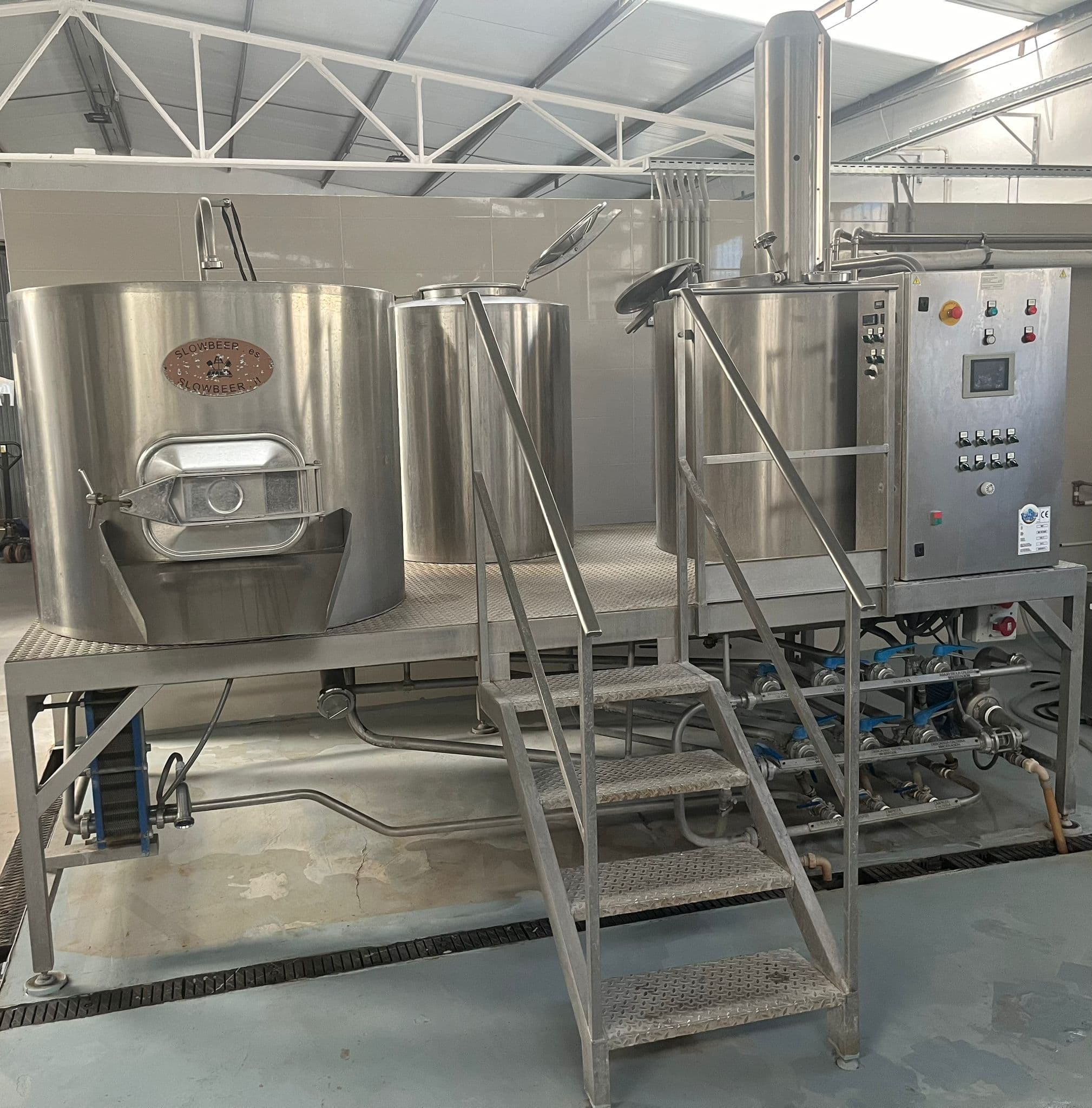

This Braucraft Mexicana brewing system has three tanks with a capacity of 3,000 liters: mash tank, lauter tank and kettle/whirlpool tank. The system was designed for continuous operation and enables double brewing per day. It is currently stored professionally and can be viewed by appointment. Operation is via steam.

Technical details

• Wort capacity: 3,000 liters
• Tanks:
  • Mash
  • Lauter
  • Boiler/whirlpool
• Additional tanks:
  • HLT (Hot Liquor Tank): 6,000 liters usable capacity, steam-heated
  • CLT (Cold Liquor Tank): 6,000 liters, laser-welded cooling jacket
• Pumps:
  • 5 transfer pumps for HLT, CLT and brewing system operations
• Heat exchange:
  • 1-stage plate heat exchanger (Thermowave)
• Control: Analog control panel with
  • Frequency converter for brewing system pump
  • Frequency inverter for HVAC and CLT pumps
  • Temperature measurement and control for HLT, boiler/whirlpool, mash and lauter

Scope of delivery

• Platform
• Grain silo and grain hydrator
• 3 hp geared motors with built-in agitators and plows
• Mixing manifold and 1.5” jacket-insulated sanitary pipes with valves
