Overview

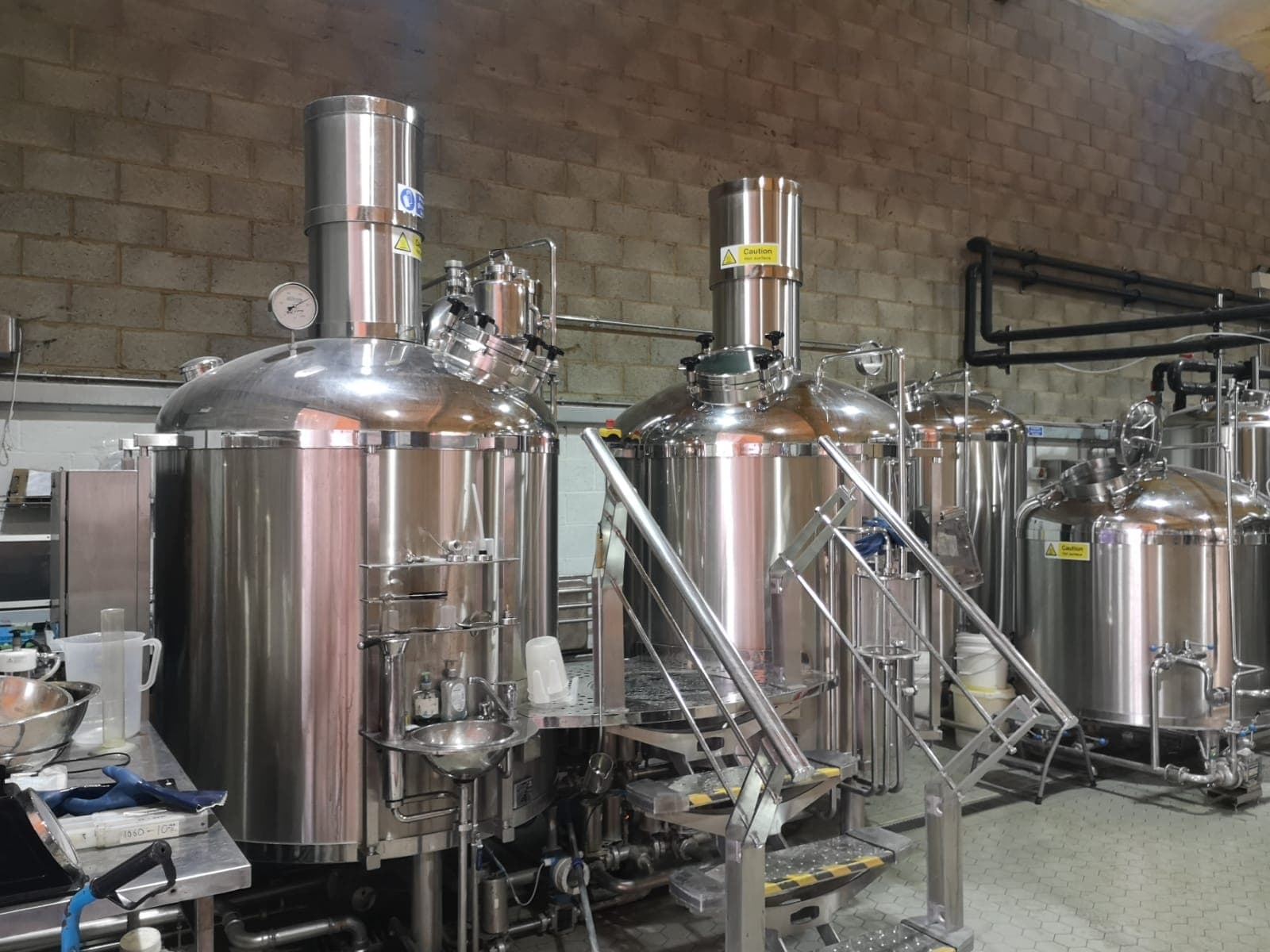

This semi-automatic 20 hL brewing system was manufactured in 2018 and is equipped with a steam-powered heating system. It includes a complete brewhouse, a steam generator, a CIP station, fermentation tanks and a KEG cleaning system.

Technical details

• Wort yield: 20 hL per brew
• Control: Semi-automatic
• Heating: Steam

Scope of delivery

• Steam generator | Certuss | Junior TC-300 | 2018
  • Capacity: 300 kg/h
  • Including water treatment plant
• Brewhouse | SKRLJ DOO | BH-3 | 2018
  • Mash & lauter tun
  • Kettle
  • Whirlpool
  • Hot water tank | 4.586 L | steam heated jacket
  • Cold water tank | 4.400 L | glycol cooled jacket
  • 2 stage heat exchanger
  • Grist bin 500kg
• Semi-automatic CIP station | SKRLJ DOO | CIP 2x500L | 2018
  • 500 Litre Acid tank
  • 500 Litre Caustic tank insulated, electric heating
  • 1x sanitary centrifugal pump
  • PLC for pump/temperature control
  • Full stainless steel construction
• Keg washer | SIFA | Idrokeg 21 | 2020
  • 12 KEGs/ h
  • 2 cleaning stations
  • Semit-automatic
  • Steam heated
  • 2x S-Type heads
• Malt mill | Robix | RX-600 | 2018
  • Capacity: 600 kg/h
• 3x Fermenting vessels | SKRLJ DOO | 2.800 litres brut size | 2018
  • Max. 3 bar
    • Low heat transfer
    • Double glycol jackets
    • Temperature controller
