Overview

The filling line for gable top packaging was manufactured in 2009 by the Norwegian company Elopak. It consists of carton filling and the process plant.

• Capacity: 8.000 packs/ h
• Carton sizes: 500ml/ 750ml/ 1000ml

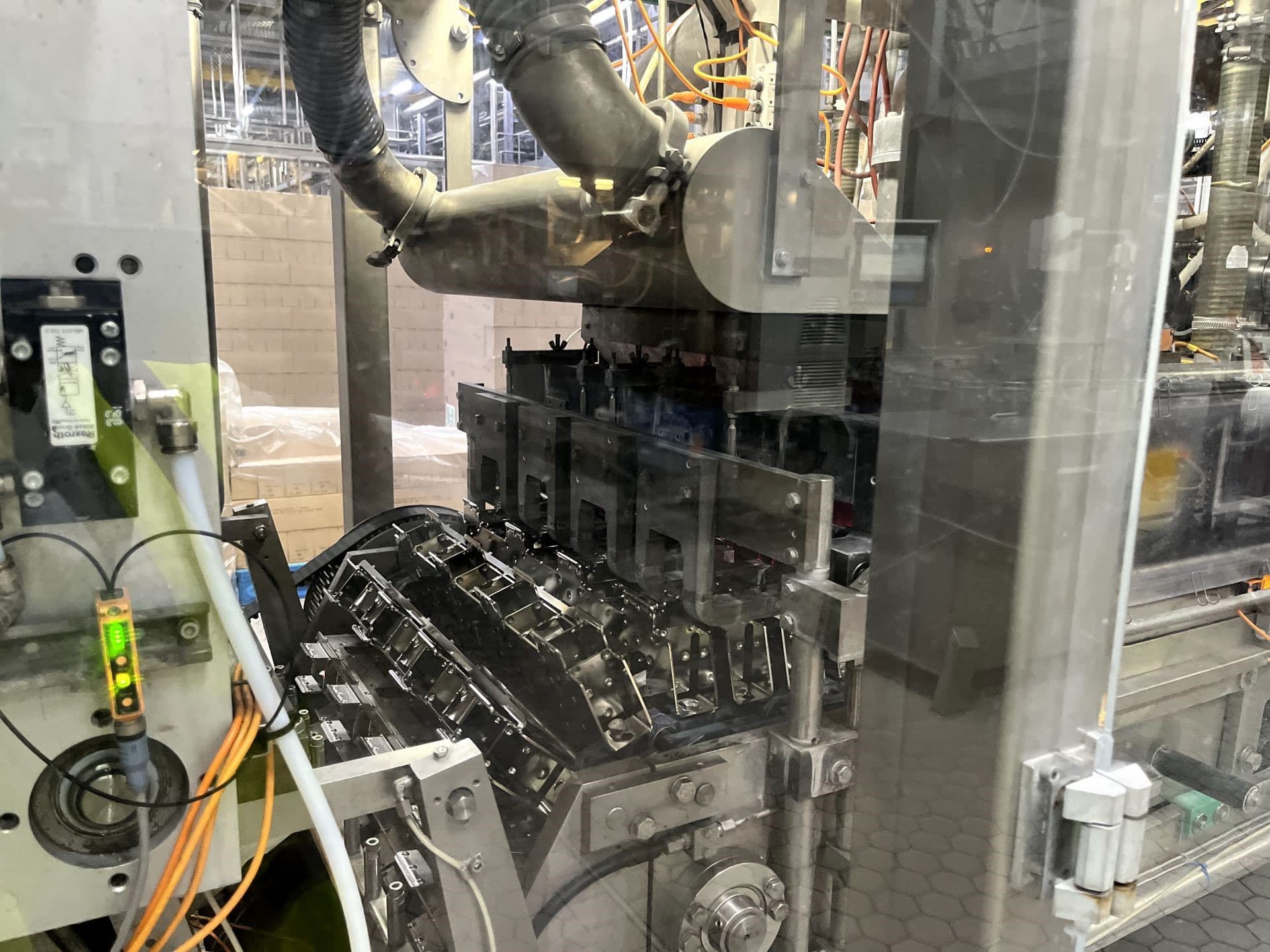

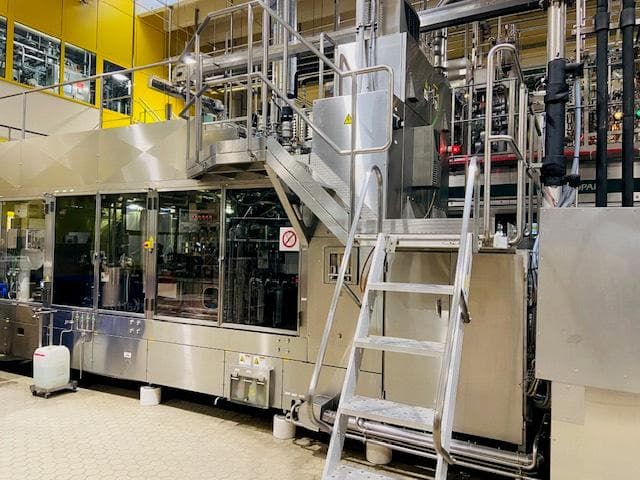

Carton filling

• Filler | Elopak | Shikoku | 2009 | Operating hours: 51,761 h
• Chemical cabinet
• Conveyor belts | PolyKetting | PL | 2009
• 2x screw cap applicator | Elopak | Pure-Pak | 2009
• 1x screw cap applicator | Elopak | Pure-Pak | 2003
• cap conveyor | Elopak | Pure-Pak | 2009
• Traypacker | Meurer | CM/TP25 B | 2010 | Operating hours: 50,474 h

Process plant

The process plant consists of degasser, feed vessel and hot water set, plate heat exchanger, sterile tank and control cabinet. A maximum of 8,300 l/ h can be produced with this plant.

Components

• Deaerator | Moeschle | - | 2009 | volume: 1.750l
• Feed vessel and hot water set
• Plate heat exchanger | GEA Tuchenhagen | FA 161 BC - 6 | 2003
• Sterile tank | Klarmann Edelstahltechnik | pressure tank | 2009 | volume: 7.000l
• Control cabinet
