Overview

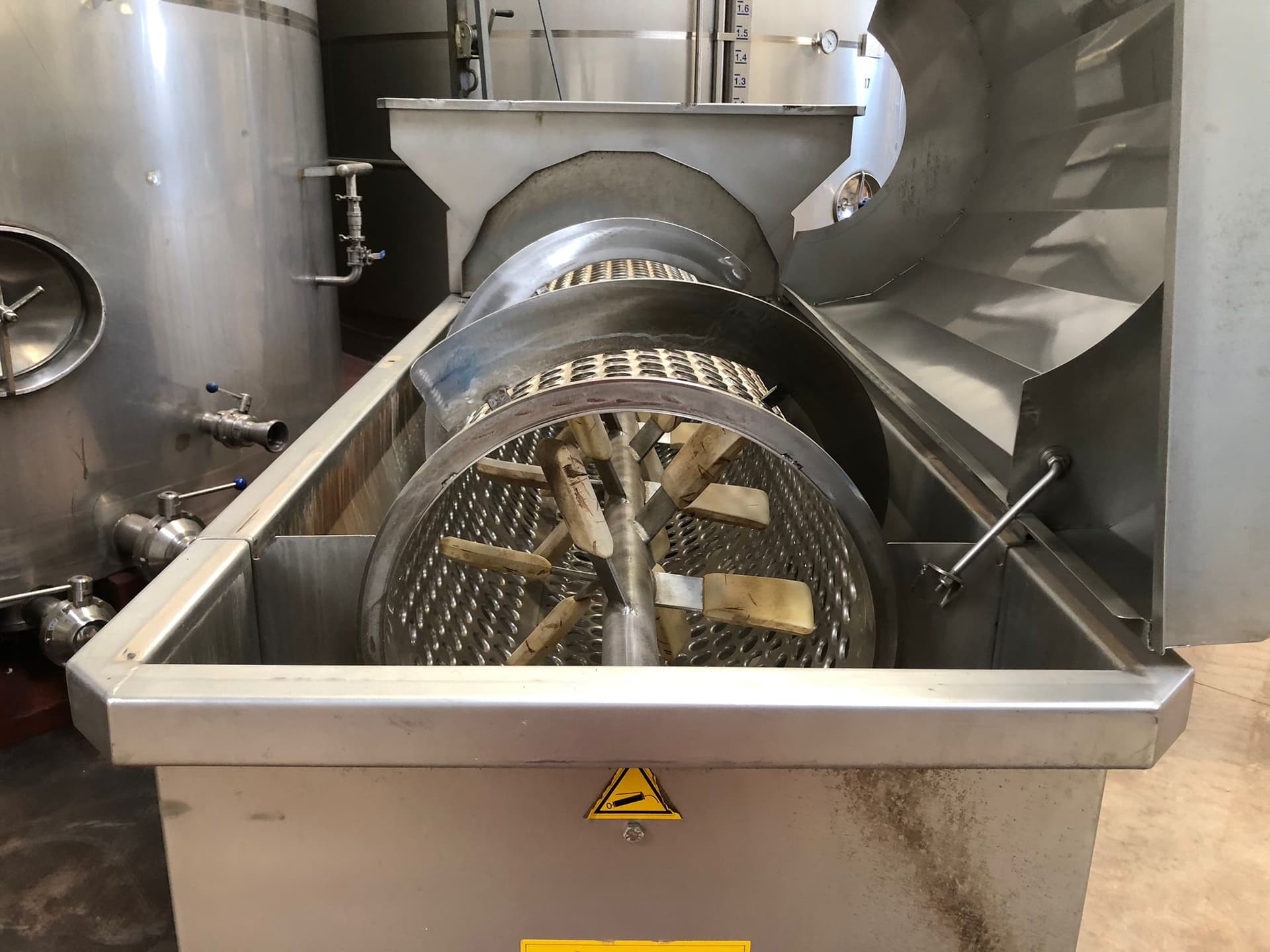

The Enoveneta TOP 15 is a grape de-stemming and crushing machine specially developed for use in wine production. It offers a capacity of 15-16 tons per hour and has a robust design made of AISI 304 stainless steel. The machine has been offered for sale due to non-use by the owner and is in good condition.

Technical details

• Capacity: 15-16 tons/hour
• Energy supply:
  • Standard voltage 400/3/50
  • Motor power:
    • Stalk remover: 2.2 kW
    • Motorized auger: 0.55 kW
• Weight: 300 kg
• Dimensions:
  • Length: 2,700 mm
  • Width: 1,000 mm
  • Height: 1,500 mm
• AISI 304 stainless steel frame on castors
• Perforated cylinder made of AISI 304 stainless steel with holes in sizes 25/22, 22/22, or 22/18

Functions

• De-stemming: separation of the grapes from the stems through a perforated cylinder
• Crushing:
  • Adjustable beater bar for gentle processing
  • Removable beater bar and cylinder for easy cleaning
• Juice extraction: Integrated juice extraction system
• Speed control: Variator for dosing auger and stalk remover

Accessories

• Open lid with removable whipping boom and cylinder
• Electric control panel
