Overview

This complete filling line for glass bottles is part of a brewery and used for filling beer in 330 ml glass bottles with crown caps. It consists of an automatic glass depalletizer, self-adhesive labeller, filling triblock and a carton packer. The entire equipment was installed in 2017 by Italian manufacturer Framax. All the equipment is still installed and can be viewed in person during production.

Technical details

• Production capacity: 2,400 bph (at 0,33l)
• Formats recently used: 0,33l
• Bottle diameter: 60mm, height is adjustable
• 26mm crown cap
• Packaging: 6x4 carton box

Scope of delivery

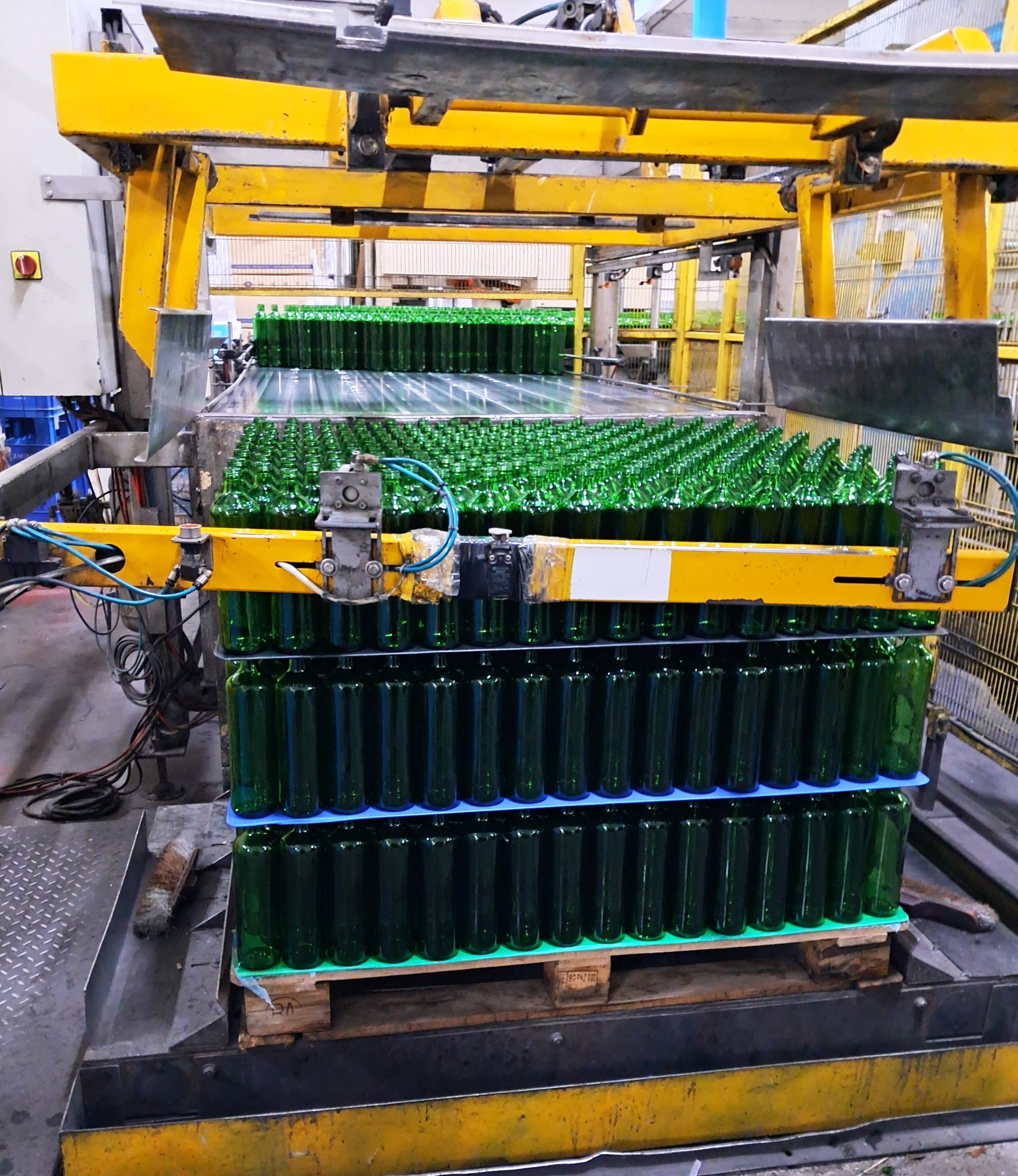

• Automatic depalletizer | Framax | DEPAL SS-3000 | 2017
  • Automatic sheet removal
  • Photocells for depalletizer
• Selfadhesive labeller | Framax | RLA-H06-S3-L3-D480 | 2016
  • 3 stations for 3 labels (front, back, neck)
  • Date/ batch printer

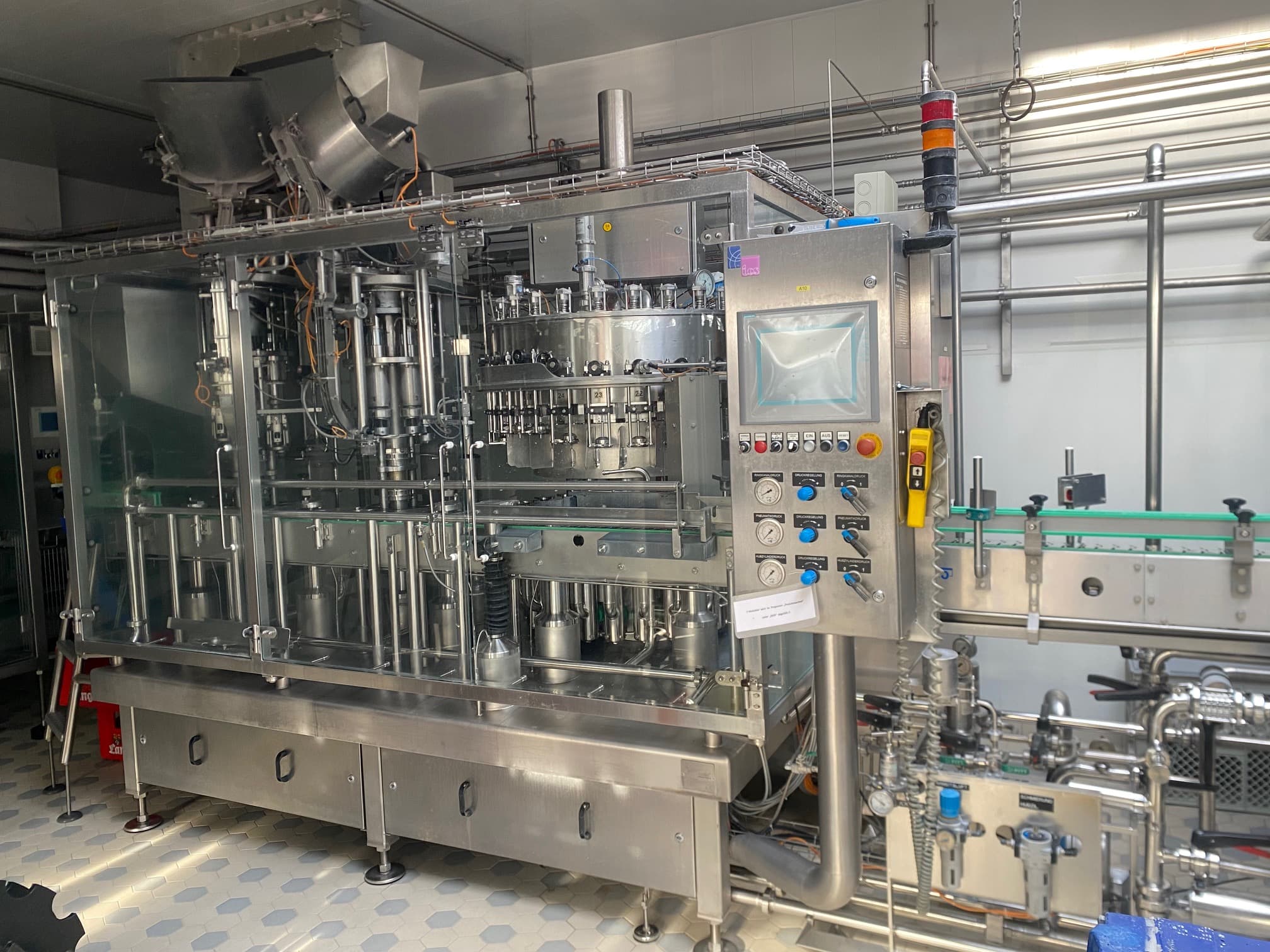

• Isobaric filler | Framax | Modulblock RFCI-16/16/1-DPS/C | 2016
  • Nominal capacity: 3.000 bph
  • 16 Rinsing positions
  • 16 Filling positions
  • Single head capping unit for crown caps with cap feeding unit
  • Double air pre-evacuation with CO2
  • Water spray device before capping, for reducing the amount of residual oxygen
• Automatic carton packer | Framax | CP-0700-1T | 2017
  • Box erecting and inserting machine
  • With taping machine
• Accessories such as conveyors, cooling, pumps
