Overview

This filling line for non-carbonated beverages in PET bottles was manufactured in 2011 and comprises a filtration system, a filling and capping machine, a labeling machine and a pallet wrapping machine. It is designed for bottle sizes from 1.5L to 5L.

The line is being sold as the factory has been closed. All machines are professionally stored and can be inspected on site.

Technical details

• Filtration system | GYM Internacional | 8000 | 2011
  • Manufacturer: GYM Internacional
  • Model: 8000
  • Year of manufacture: 2011
  • Capacity: 8,000 L/h
  • Power consumption: 4 kW
  • Dimensions: 2,500 x 1,500 x 100 mm
  • Weight: 1,110 kg
  • Bacteriological filtration through housing system

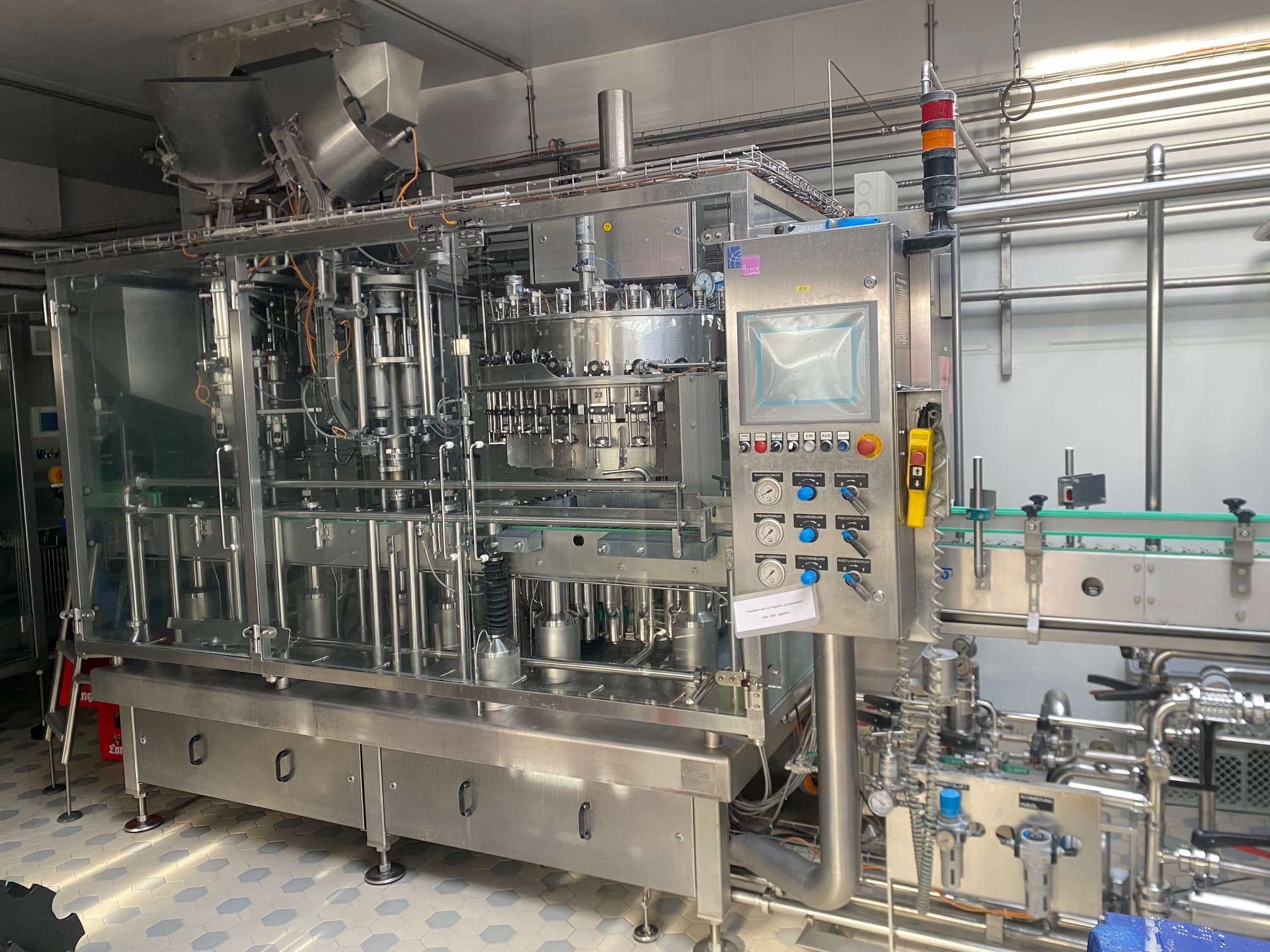

• Automatic filling monoblock | GYM Internacional | Grupo 9-1. PK | 2011
  • Bottle formats: 1.5L & 5L PET
  • Output:
    • 1,600 bottles/hour (1.5L)
    • 700 bottles/hour (5L)
  • Filling heads: 9
  • Capping heads: 1 (screw cap)
  • Bottle diameter: Min. 120 mm, max. 300 mm
  • Bottle height: 250-400 mm
  • Direction of rotation: clockwise
  • Power consumption: 3.5 kW
  • Dimensions: 4,000 x 3,000 x 3,500 mm
  • Weight: 2,500 kg
• Rotary labeling machine | NEWTEC | LEOPARD HM 720 F6 S1E1 | 2011
  • Output: 3,000 bottles/hour
  • Dimensions: 2,750 x 1,700 x 1,780 mm
  • Weight: 3,500 kg
• Pallet wrapper (semi-automatic) | ECOPLAT | ECOPLAT BASE | 2011
  • Capacity: 35 pallets/hour
  • Type: Turntable
  • Control system: PLC
  • Max. Pallet weight: 2,000 kg
  • Semi-automatic
  • Dimensions: 2,439 x 1,500 x 2,580 mm
  • Weight: 1,200 kg
