Overview

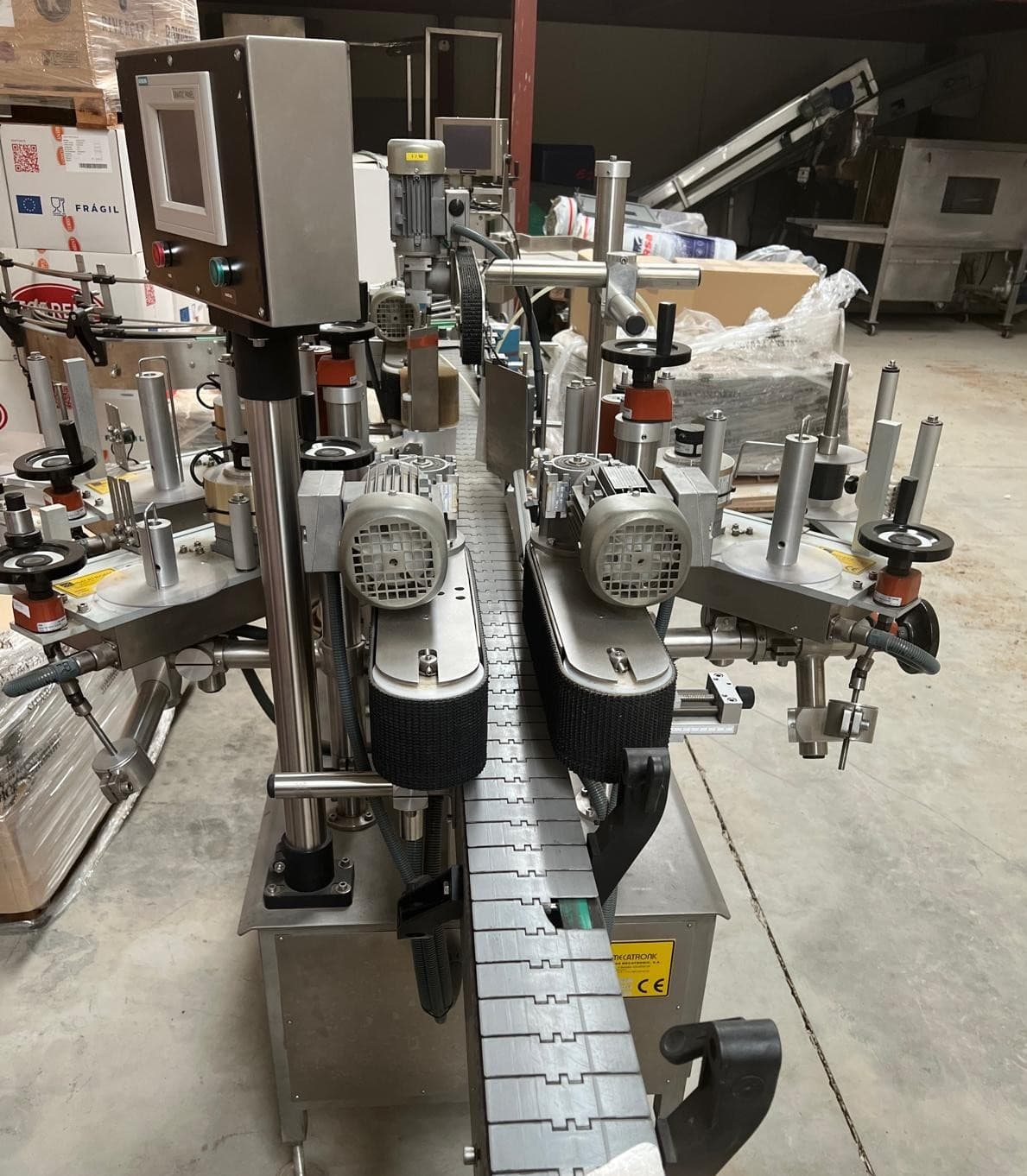

This cold glue labelling machine was manufactured in 2005 by German company HEUFT. The machine is no longer in production use and is now available for sale. It includes two integrated laser coders for date marking and supports a wide range of bottle formats. Ideal for high-speed beverage production environments.

Technical data

• Capacity: Up to 60,000 bottles per hour
• Formats: Supports 11 bottle formats
  • From 0,3l - 0,66l
  • Steini, NRW, Longneck
• Container types: Glass, not transparent, non-contoured
• Container diameter: 60.4 – 69.1 mm
• Container height: 174 – 270 mm
• Label positions:
  • Front (up to 2 labels)
  • Back (up to 1 label)
• Label size range:
  • Width: 70 – 111 mm
  • Height: 33 – 100 mm
  • Band height: 1100 mm
• Max. ambient temperature: 40°C
• Power connection: 400 V
• Machine design: Straight version, size L (approx. 3360 mm wide)
• Bottle carousel diameter: 1610 mm
• Number of bottle plates: 42
• Bottle rotation in carousel: Mechanical
• Guide star diameter: 690 mm
• Labelling stations:
  • 2 x Cold glue labelling stations
  • 8 glue pallets
  • 9 gripper positions
  • Automatic magazine feeding

Scope of Delivery

• 1 x Labelling Machine | HEUFT | TORNADO | 2005
  • Including:
    • 2 x Integrated Laser Coders | Bluhm
    • Complete labelling setup with format parts for 11 bottle formats
    • Cold glue stations, glue pallets, gripper arms, and automatic magazine
    • Technical documentation
