MSK MSK 381 Shrink Hood Applicator (2015)
Country:
France
Year:
2015
Category:
Palletizing
Manufacturer:
MSK
Model:
MSK 381
Availability:
Sold
SKU:
FR-PAL-MSK-2015-00002
Overview

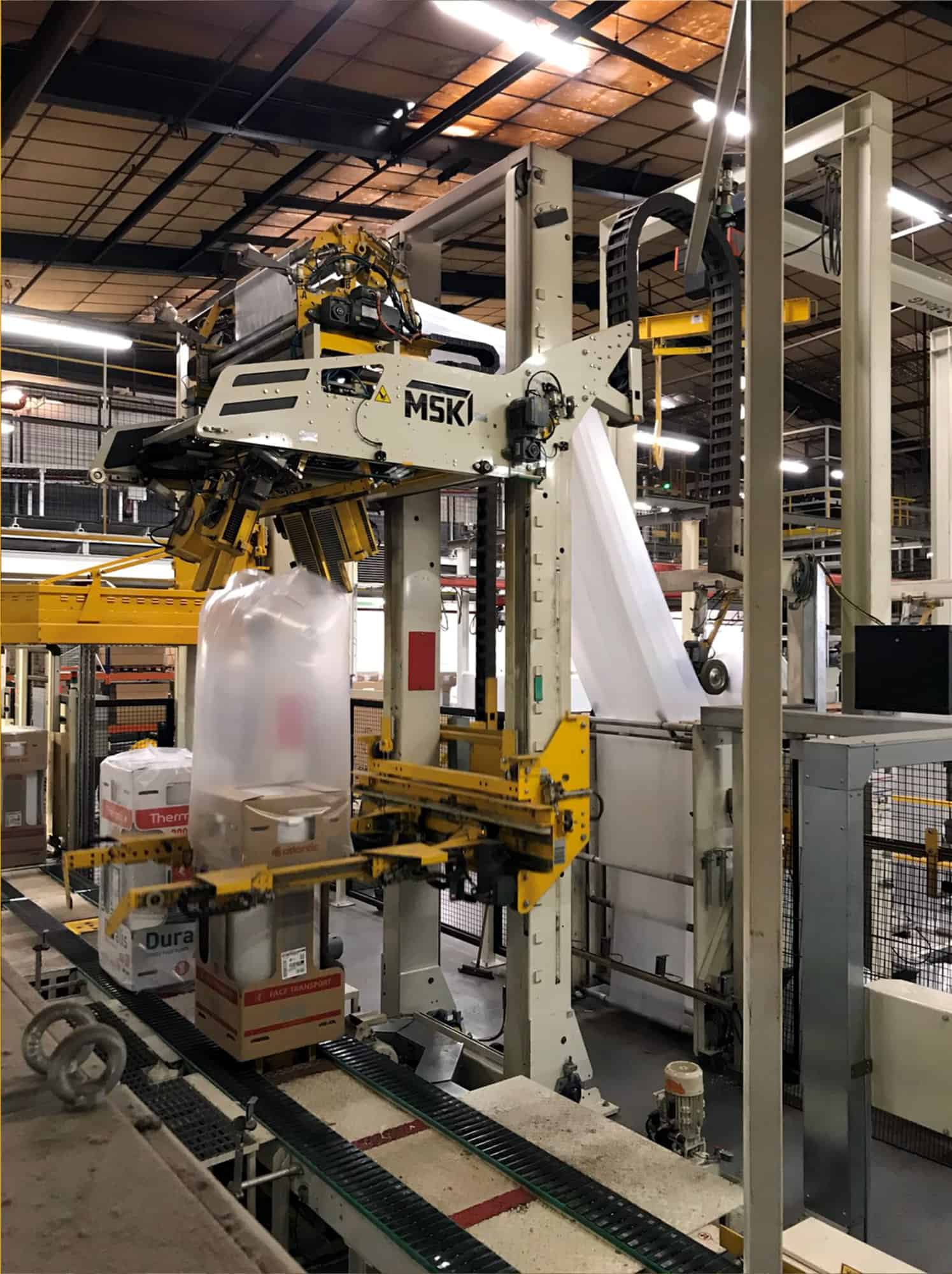

Versatile high velocity pallet shrink hood applicator MSK Multitech / Recotech MSK 381, ideally suited when flexibilty, easy-to-operate reliabilty and economic-efficiency are paramount. The shrink hood applicator MSK Multitech owes its name to its multi-functionality: The system automatically processes up to four film formats or thicknesses. That provides the flexibility to wrap different pallet formats and approach any opening size, even if the loads have different dimensions. This technology allows MSK Multitech to save film by minimizing the amount of film used.
The shrink packer was built in Germany in 2015 and has since been used in a building materials company in France mainly to pack rolls of insulation material. In 2016, a 2nd film magazine was purchased.
Tech Specs:
- Capacity: 200 pallets / h
- Version 2 formats (upgrade to 4 formats possible)
- Ambient temperature:
20 °C (min + 15°C, max + 40 °C). - Pneumatic data:
Existing air pressure 5 – max. 6 bar
Air consumption: 120 L/pallet - Gas data: Gas pressure 50 – 80 mbar (natural gas)

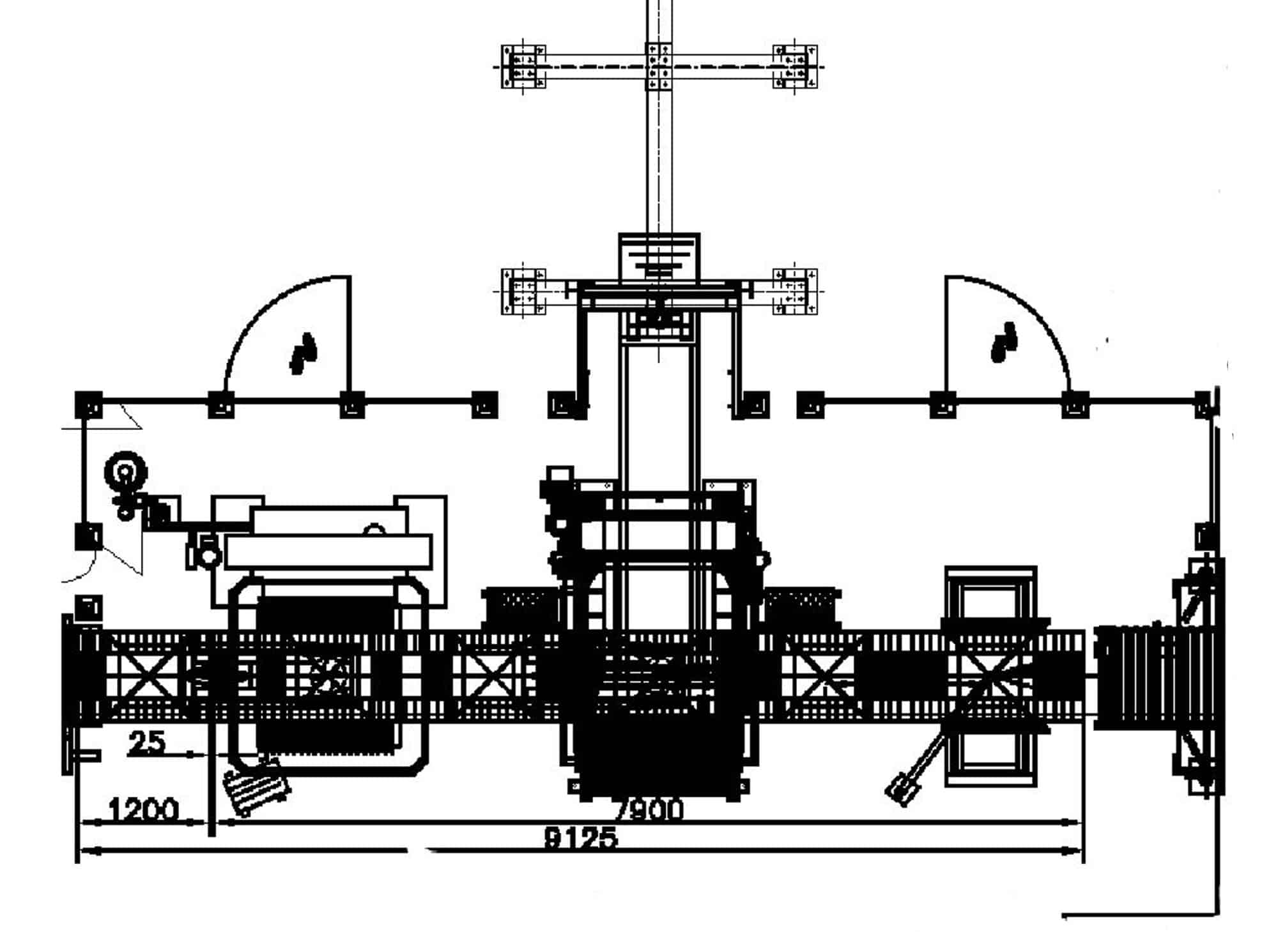

- Dimensions: Height Multitech 5200 mm,
Recotech 5400 mm - Max. height of the products: 2500mm
- Max. length and width: 800x800mm
Scope of Supply:

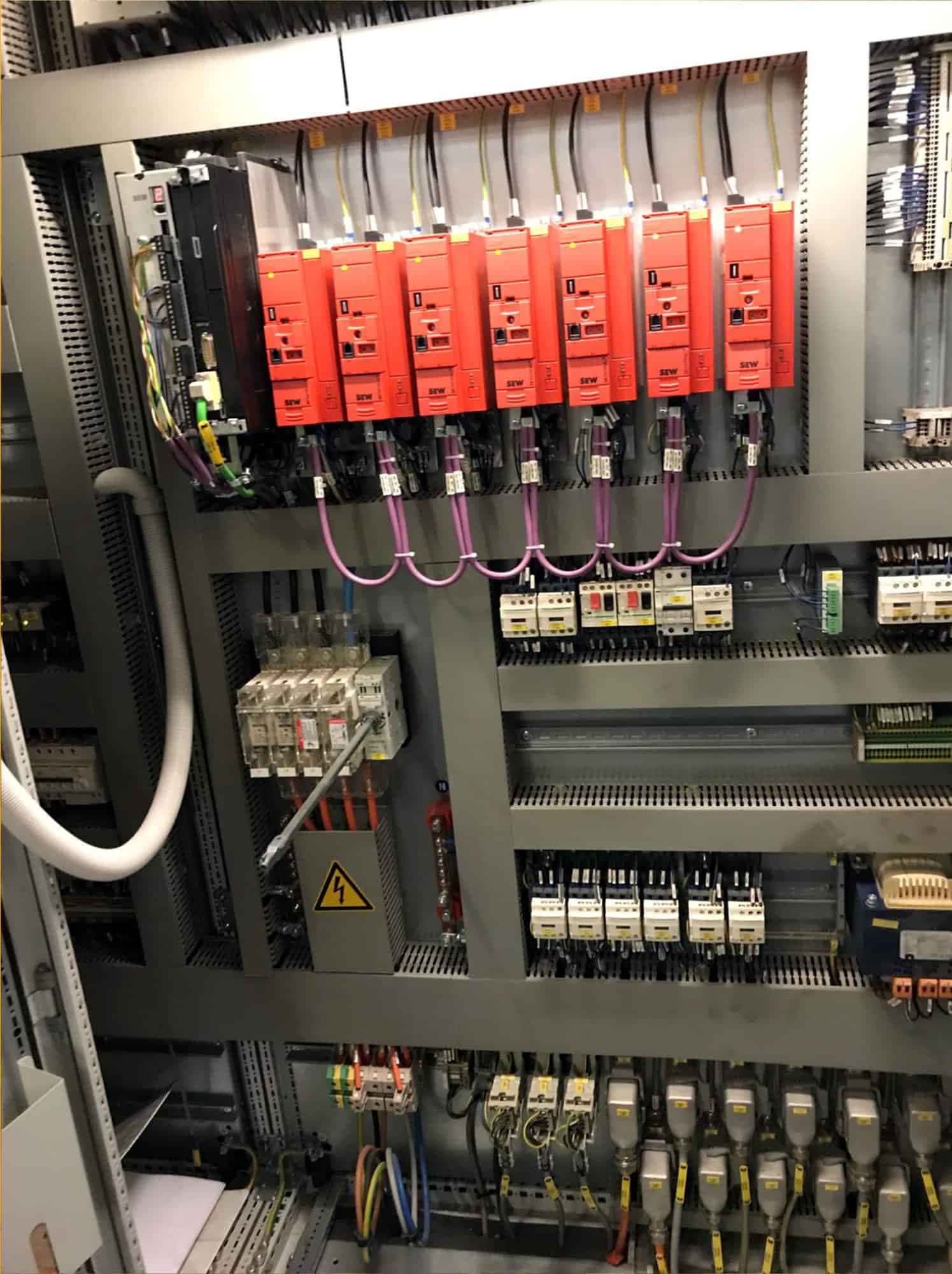

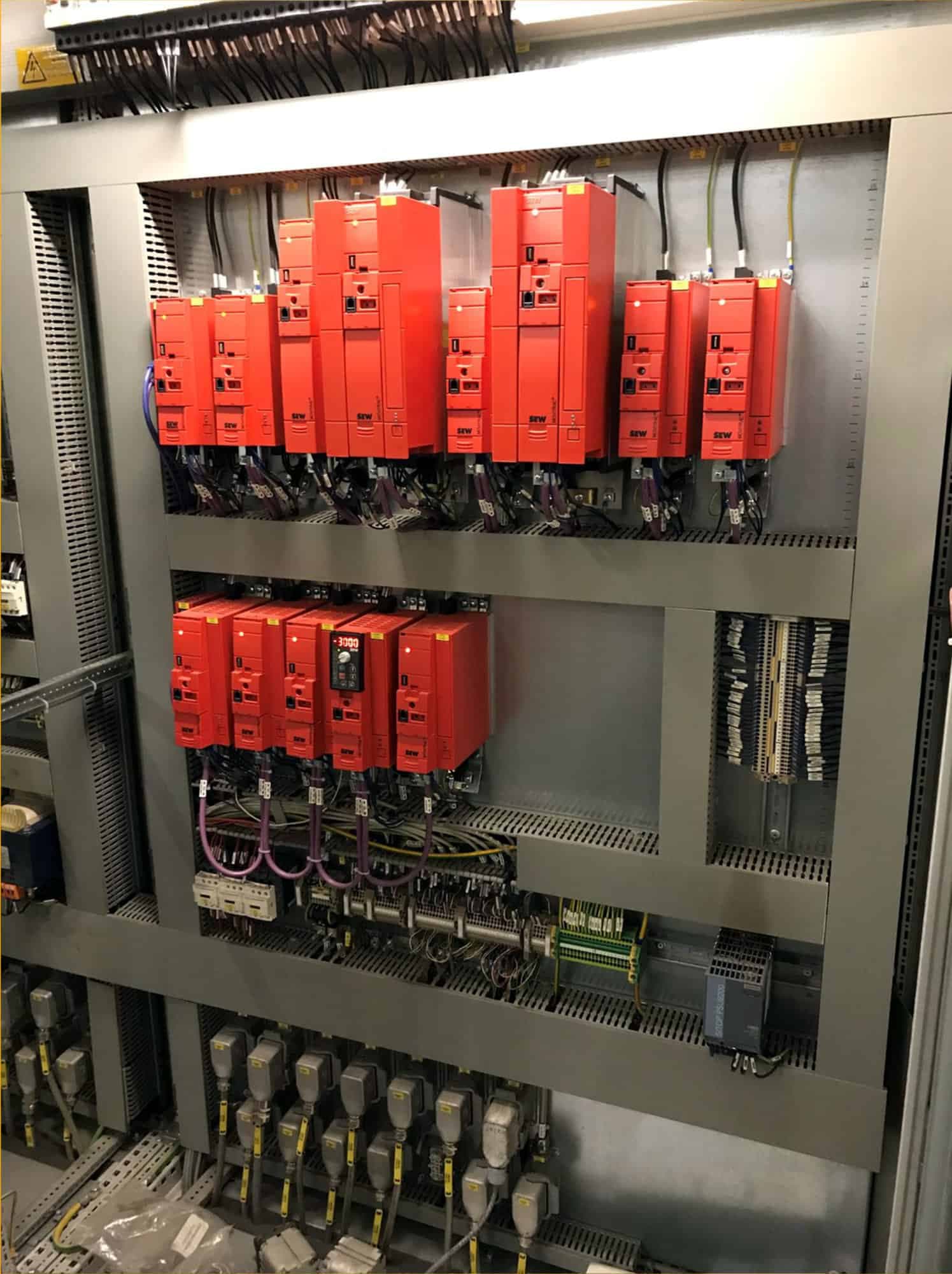

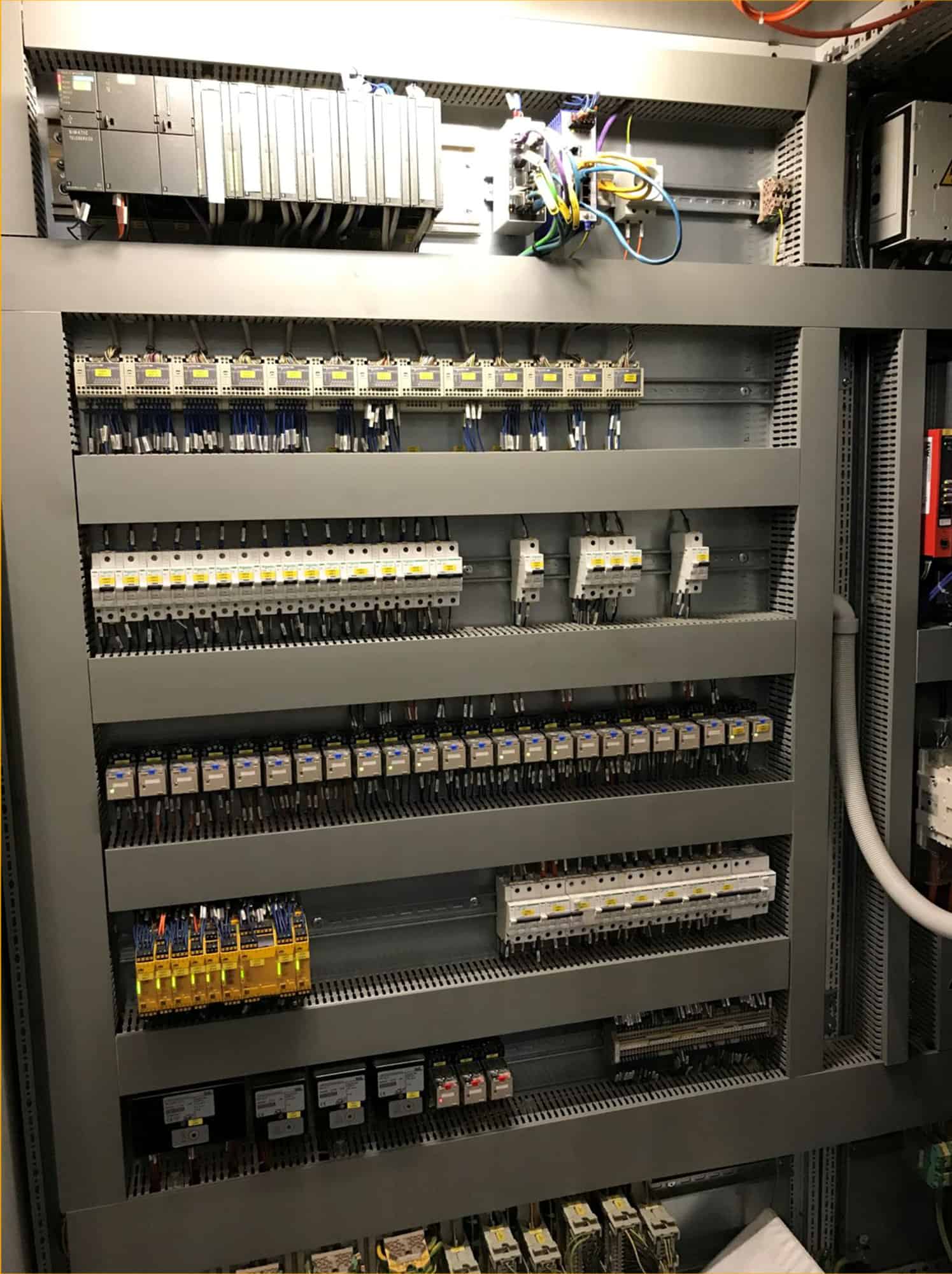

- Feeding and management control cabinet
- Control panel – HMI
- The conveyor from the first shaking station at the input to the shrinking station at the output
- The product shaking station (centering on the 2 axes)

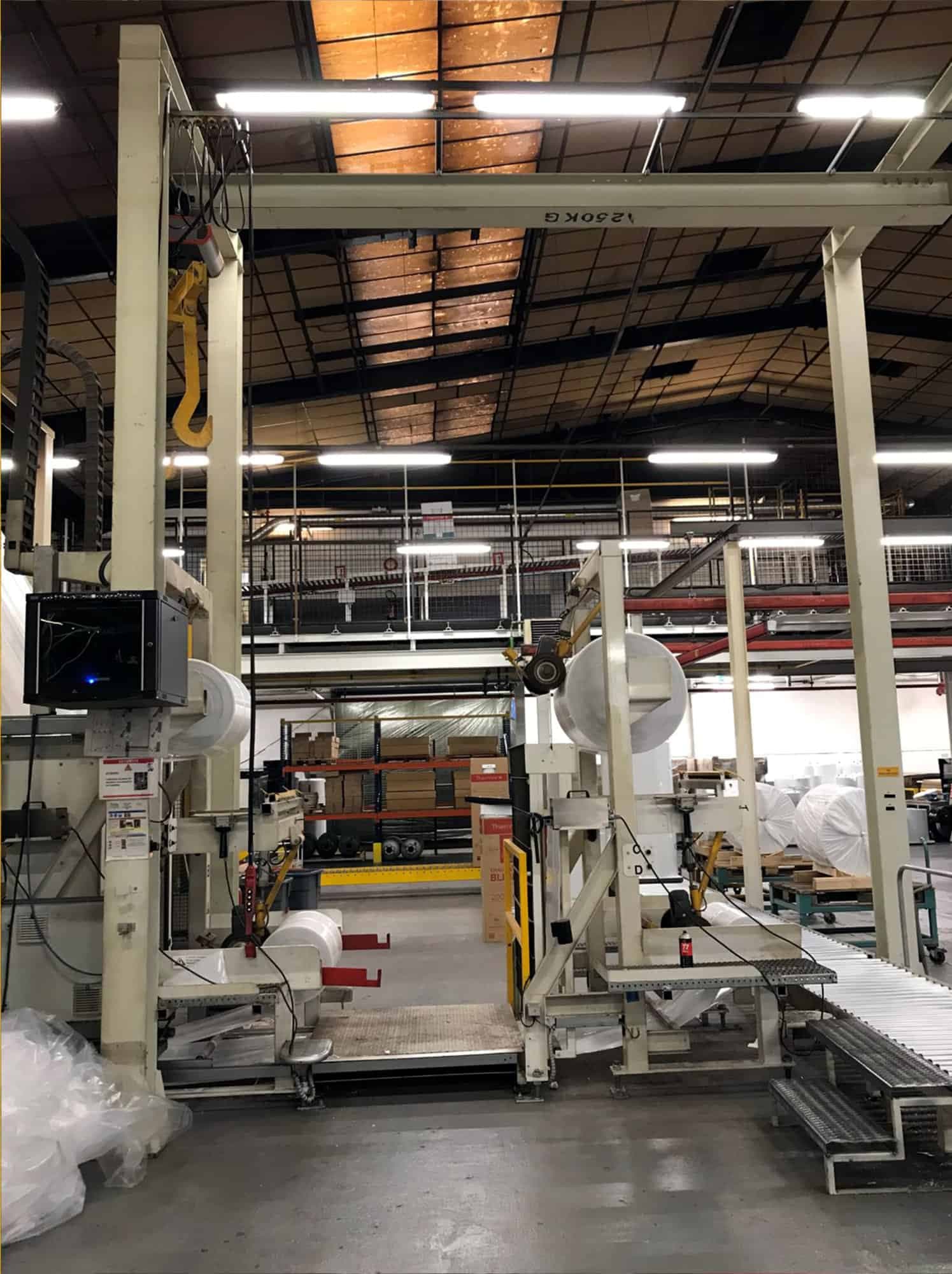

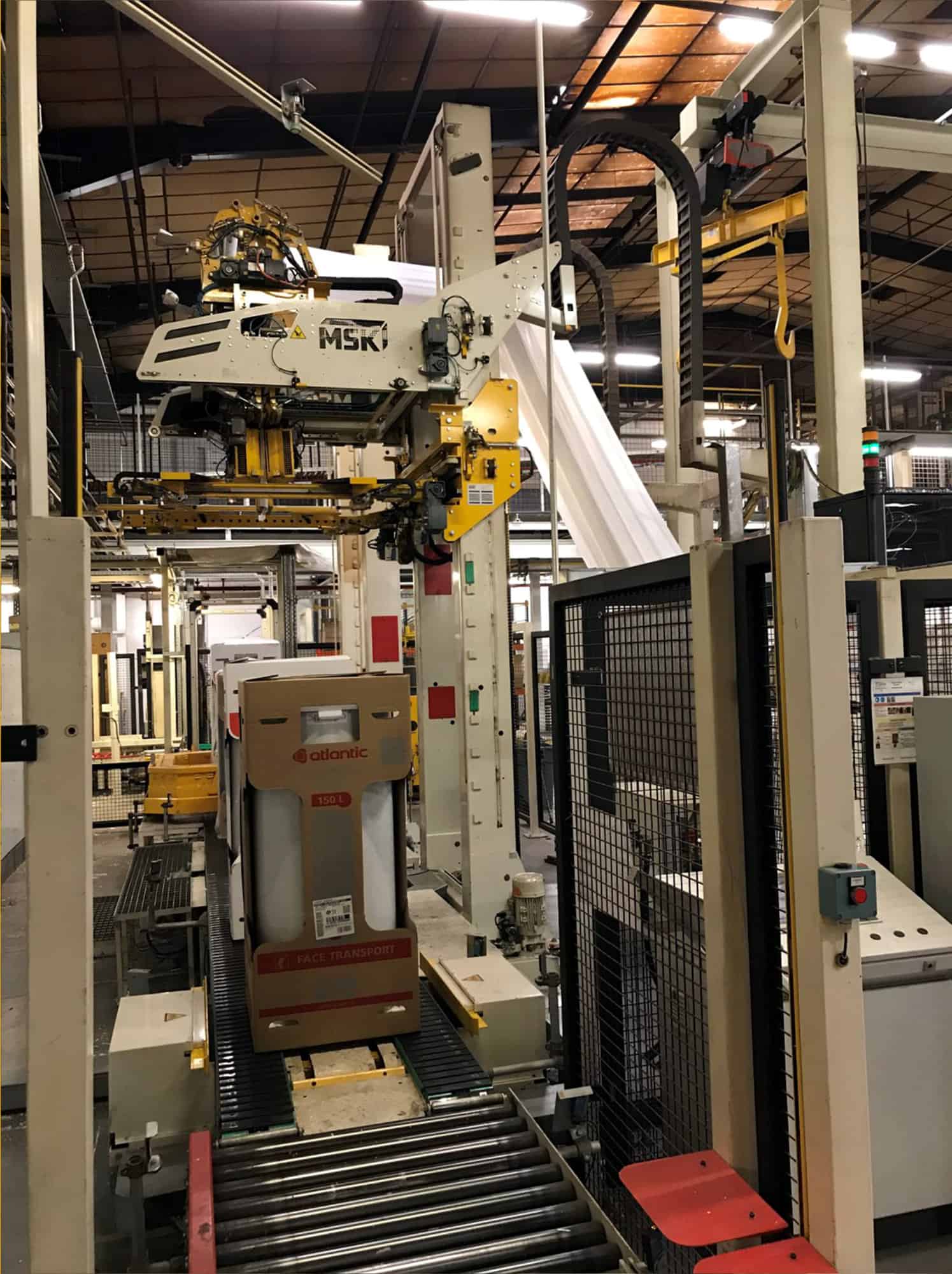

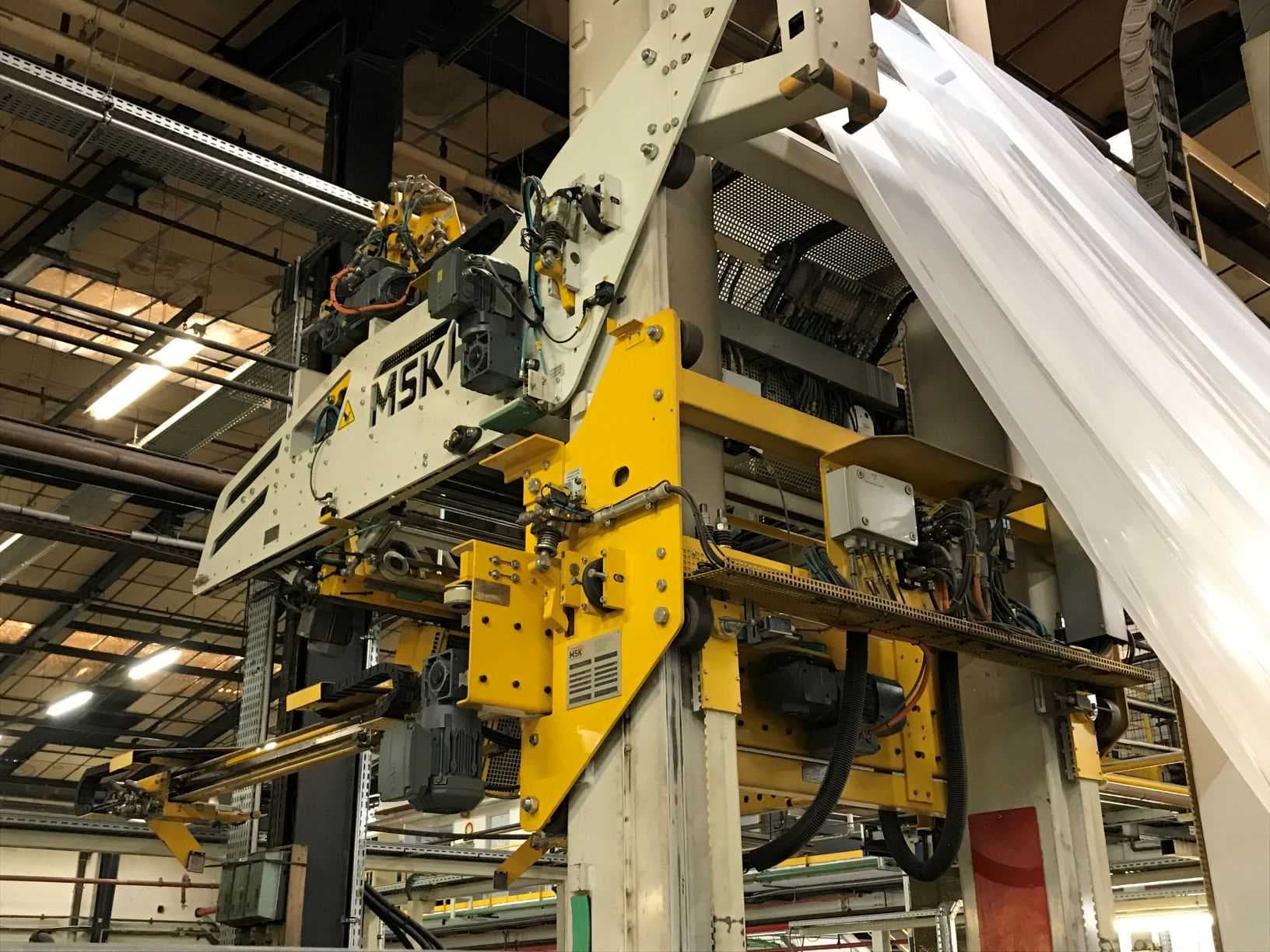

- Hood station with film unwinders, film feed rollers (4 circuits), the welding head for the top of the hood and the film/hood clamping frame
- Shrinking frame with gas burners
- Pulley block and its supports for loading the rolls
- 6 mobile roll transport trolleys
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
If you have any further questions please contact us
Carsten Hormes
Your Account Manager
CLICK TO CHAT ON WHATSAPP
Related Products
Kettner - 2000 - Germany
Palletizer
25,000 €
Movitec - 2017 - Spain
Pallet Winder
42,000 €
MSK - 2019 - Germany
Shrink Hood Applicator
115,000 €
KHS - 2000 - Germany
Glass Depalletizer
39,000 €
Robopac - 2013 - Germany
Pallet Winder
35,000 €
PIERI - 2022 - Hungary
Pallet Winder
36,000 €
Beyer - 2006 - Germany
Palletizer
33,000 €
FMT - 2015 - France
Palletizer & Winder
99,000 €
Beyer - 2007 - Germany
Palletizer
55,000 €
SIDEL/ SIMONAZZI - 2006 - Germany
Glass Depalletizer
85,000 €
SEMA - 2002 - Germany
Palletizer
29,500 €
Liegat - 2004 - Germany
Pallet Winder
18,000 €
Eurapack - 2011 - Germany
Pallet Winder
24,000 €
Strapex - 2002 - Germany
Pallet Winder
20,000 €

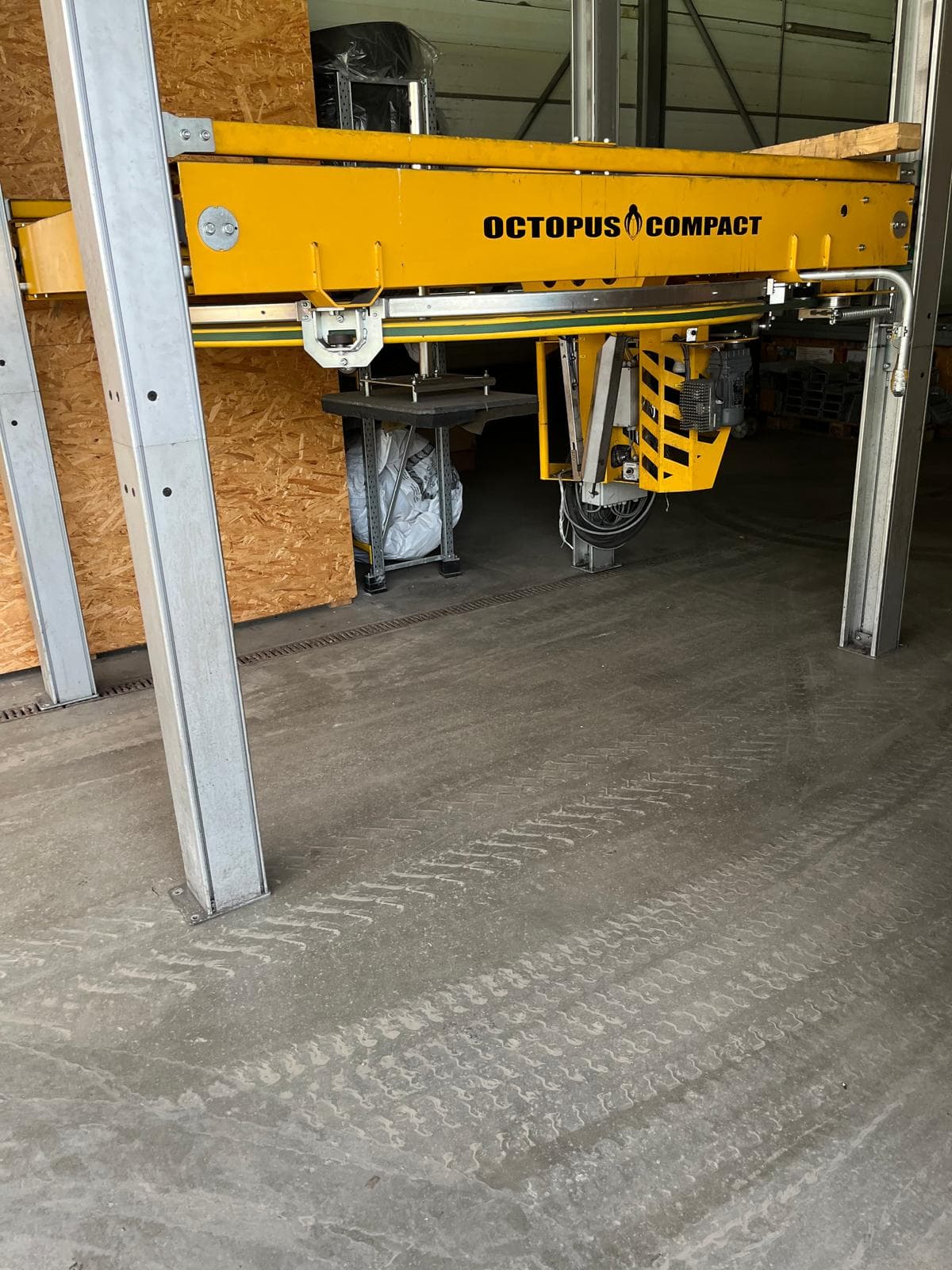

Octopus - 2010 - Switzerland
