Overview

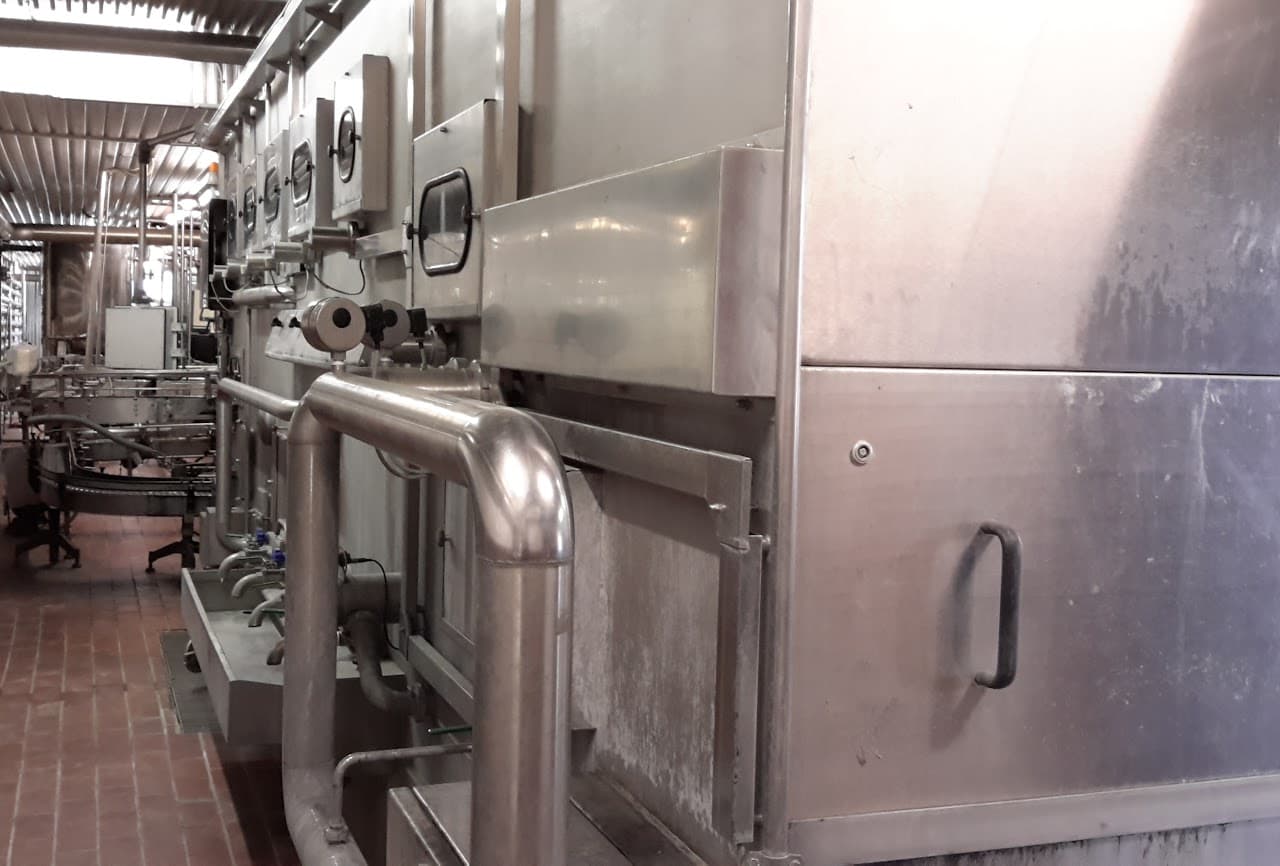

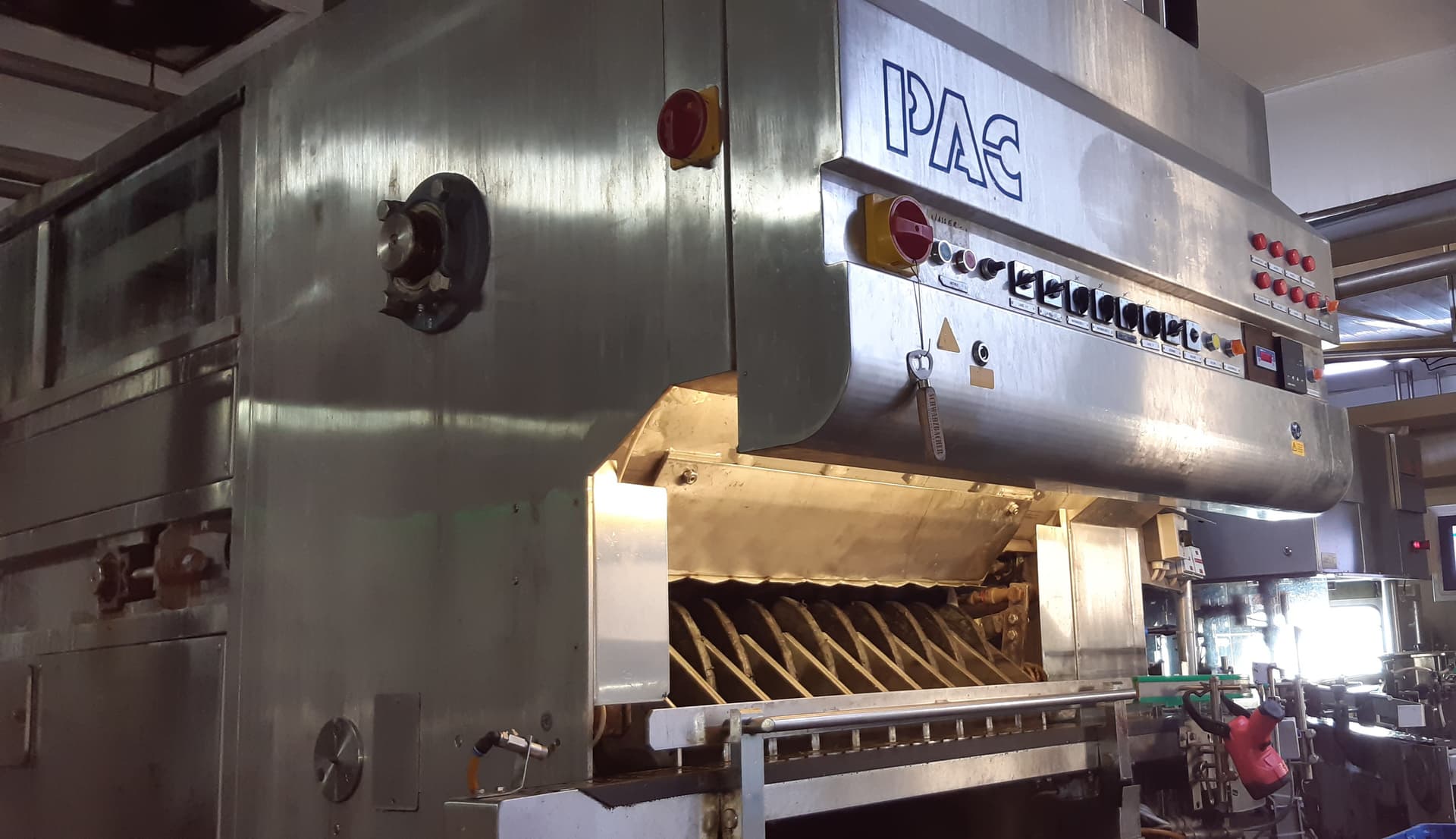

This bottle washer was built in 1995 by Swiss manufacturer PAC. The machine is out production and be viewed in person in our warehouse.

Techn. Details

• Capacity:
  • 6,000 bph
  • Min/ Max: 3,000 bph – 6,300 bp
• Bottle type: 0,5L, Euro, NRW, incl. Set of parts for 330ml vichy bottle
• Bottles per row: 12
• Bottles in the machine: 1,080
• Bottle cell carriers: 96
• Dimensions:
  • Length: 6,000 mm
  • Width: 1,545 mm
  • Height: 2,175 mm (without feet)
  • Weight: approx. 5,800 kg
• Water consumption: 3,6 m³/h
• Heat consumption 80°C: 480 kJ/ h x 1000
• Electrical consumption: 11 kW
• Incl. Spare parts
  • Motors for rear and front drive
  • Bottle cell carriers
  • Wear parts
• Machine body fully in stainless steel
• All hot zones with 5cm insulation
• Label extraction belt
• Heat exchanger in stainless steel for low pressure steam 116°C-120°C at 0,7 - 1 bar
• Self cleaning spray tubes in stainless steel
